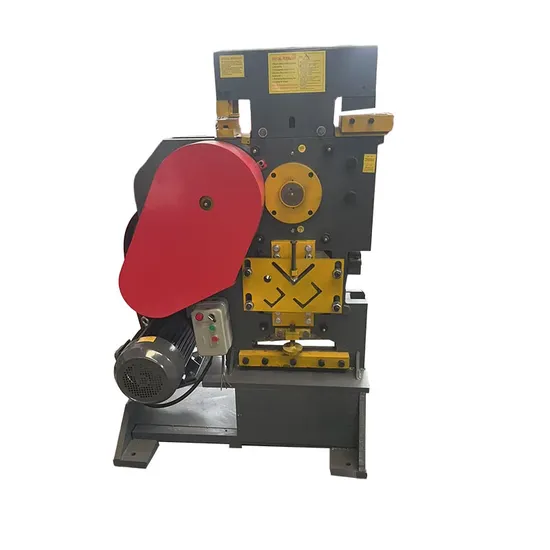

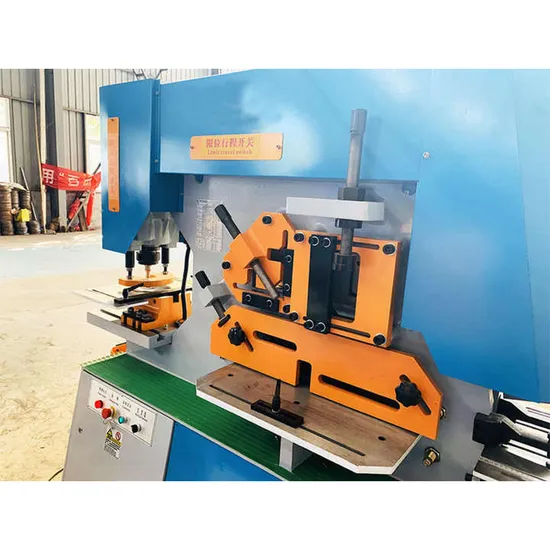

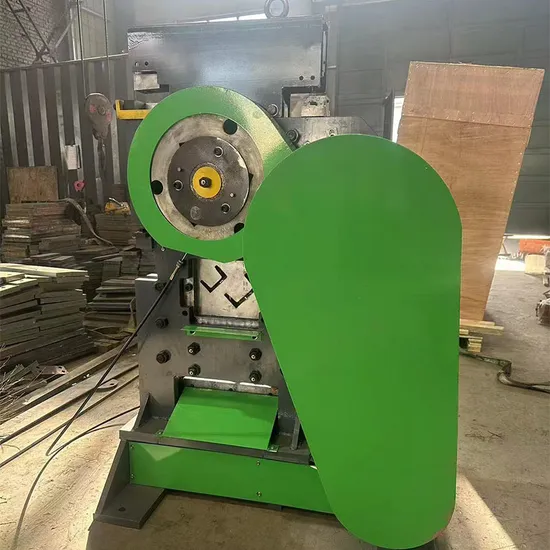

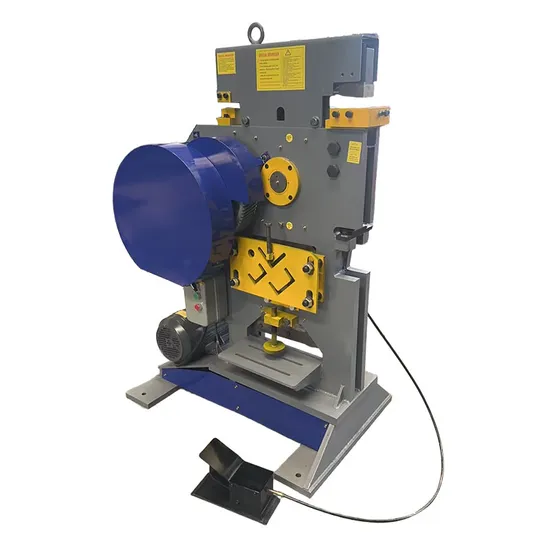

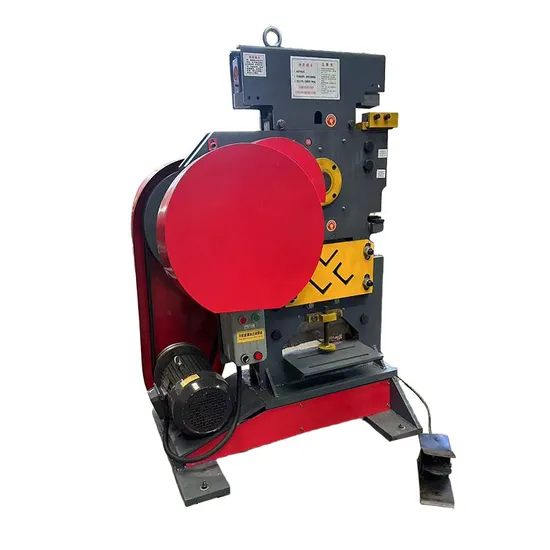

An integrated, multi-functional hydraulic ironworker designed for high-efficiency punching, shearing, and notching of various steel profiles.
Features five independent workstations for punching, angle shearing, flat steel cutting, and notching.
Engineered for processing diverse materials including channel steel, angle steel, round bars, and square steel.
Improves production efficiency and processing accuracy for batch component manufacturing.
Built with a solid mechanical structure and an advanced hydraulic system for stable, continuous operation.
Ideal for demanding environments such as structural steel fabrication, manufacturing, and construction.
Designed with comprehensive safety features to ensure operator protection during all processes.
Shear Force: 360 KN
Motor Power: 2.2kw / 380V
Tool Stroke: 30 mm
Throat Depth: 100 mm
Angle Iron Shearing Capacity: ≤75 x 75 x 8 mm
Punching Capacity (Round Hole): ≤Φ22mm Dia in 8mm Thickness
